Fuel Rails, Ford Coyote

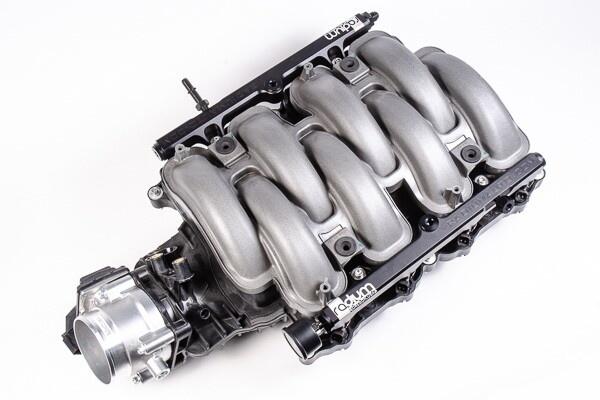

This kit is compatible with all vehicles that use the 5.0L Ford Coyote modular engine including the direct injected 2018+ Mustang GT, 2011-2017 Mustang GT, Ford Shelby GT350, Ford Falcon, Ford F-150, etc. It can be used with OEM returnless or aftermarket return fuel systems. It also fits the Ford Racing Boss 302 Manifold.

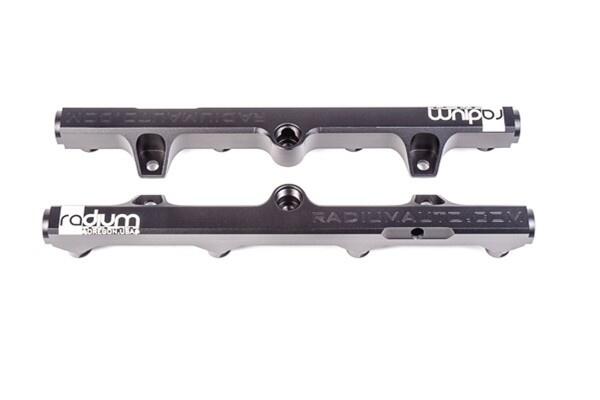

Manufactured with a large internal bore, the fuel rail can support all necessary engine power requirements. They are CNC machined from solid 6061 aluminum, black anodized, and laser etched for a high quality surface finish. Each rail has three 8AN ORB (3/4-16 female) threads and one 1/8" NPT female port. Adapter fittings can be found HERE and HERE. Like the OEM fuel rails, the injector bores are 14mm ID so factory injectors are permitted. Additionally, these rails have provisions for the factory injector retaining clips, as shown below.

This kit is compatible with all fuel types including popular alcohol mixtures such as E85.

For the 2018+ Mustang GT and the Shelby GT350, Radium P/N: 14-0359 (shown below) is required to adapt the OEM fuel sensor.
