Fuel Rail, Toyota 1JZ-GTE (VVT-i)

PORTS AND FITTINGS

The fuel rail ports are tapped for 8AN ORB.Appropriate fittings must be selected based on the specific application. Ample space around the fuel rail port(s) is necessary for larger accessories such as fuel pressure regulators, fuel pressure gauges, and fuel pulse dampers. To verify clearance, the dimensional drawings on the product pages can be used as a reference guide.

Manufactured with a large 0.69" internal bore, the fuel rail can support all necessary engine power requirements. They are CNC machined from 6063 aluminum, media blasted, black anodized, and laser etched for a high quality surface finish. This kit is compatible with all fuel types including popular alcohol mixtures such as E85.

FUEL INJECTOR FITMENT:

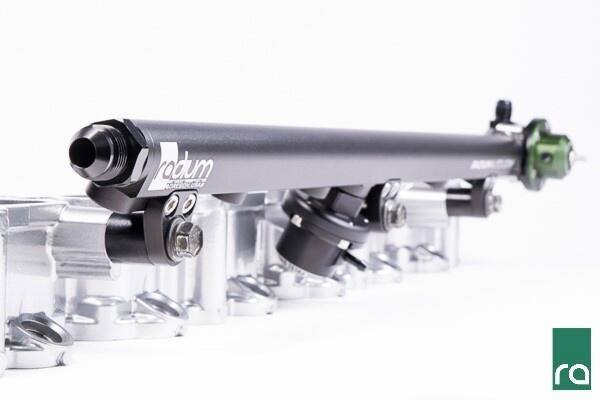

The Radium fuel rail for the 1JZ-GTE VVT-i is compatible with the OEM 1JZ-GTE VVT-i top-feed fuel injectors and any aftermarket injectors that fit the OEM fuel rail. Injector bores are 11mm.The fuel rail re-uses the factory mounting bolts and plastic spacers. Make sure these are present before beginning installation.

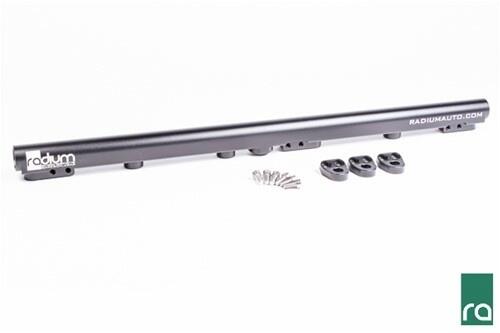

INCLUDED:

20-0268 Toyota 1JZ-GTE Fuel Rail:
-Black Anodized Laser Etched Aluminum Fuel Rail
-Black Anodized Aluminum Mounting Feet (x3)
-Stainless Steel Mounting Feet Bolts (x6)
