Universal Fuel Level Sender, 0-90 ohm, 8in

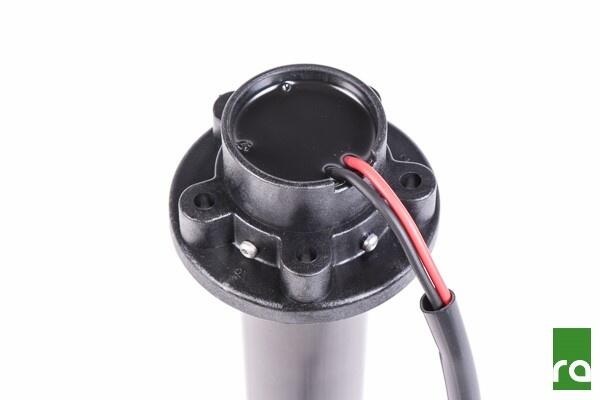

Float-style fuel level sending units with standard SAE 5-bolt mounting pattern. Easy to install using the supplied hardware and Deutsch connectors (gauge not included). Fits most fuel cells including ATL, Fuel Safe, Pyrotect, Harmon, Jaz, etc. and extensively used with the Radium Fuel Cell Surge Tank.

Unlike most other senders, this rugged design features a FR4 conformal coated PCB, epoxy potted electrical terminals, and an anodized surface finish making it suitable for use with gasoline, diesel, and specifically alcohol based fuels including methanol, ethanol, E85, etc

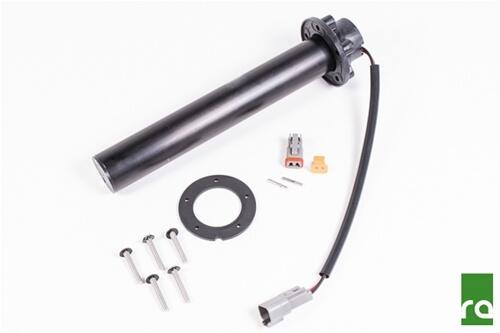

-Level Sensing Probe
-SAE 5-Bolt Gasket
-Stainless Bolts 10-32, 1-1/4" (x5)
-Nylon Sealing Washers (x5)
-Deutsch DT 2P Connector
-Deutsch DT Sockets (x2)
